Fiber Laser Cutting Machines for Metal Pipe
Fiber laser cutting machine for Metal pipes. It can cutting and slotting, No matter what shape of tubular, long steel. Including: round tube, square tube, special tube, I-beam, H-beam, C shape steel, Angle steel and more.
Key words:
Fiber Laser Cutting Machines for Metal Pipe
Classification:
Fiber Laser Cutting Machines for Metal Pipe
Machine Parameters:
| Model |
JA-6017G |
JA-6023G | JA-6035G | Customized |
| Machinable size (Tube/Pipe) |
Diameter: 20-170mm Max Leight: 6000mm |
Diameter: 20-230mm Max Leight: 6000mm |
Diameter: 20-350mm Max Leight: 6000mm |
Diameter: Customized Max Leight: Customized |
| Machinable size (Strip metal) |
Width: 20-170mm Max Leight: 6000mm |
Width: 20-230mm Max Leight: 6000mm |
Width: 20-350mm Max Leight: 6000mm |
Width: Customized Max Leight: Customized |
| Function |
Vertical cutting/ Angle cutting/ Laser slotting |
|||
| Cutting Material |
Copper/ Steel/ Iron/ Stainless steel/ Aluminium alloy/ Mg-alloy/ CrMo steel |
|||
| Laser power |
1500W/ 3000W/ 6000W/ 12000W/ 20000W/ 30000W |
|||
| Cutting Precision |
<0.02mm |
|||
| Control System |
1.CNC Control System with 18 Languages 2.Support Enter the values/ Import the drawing |
|||
| Compatible Software: |
AutoCAD /CorelDraw /Adobe Illustrator |
|||
| Supported file format: |
.DXF /.DWG/ .PLT /.AI /.GERBER and more |
|||
Cutting Material

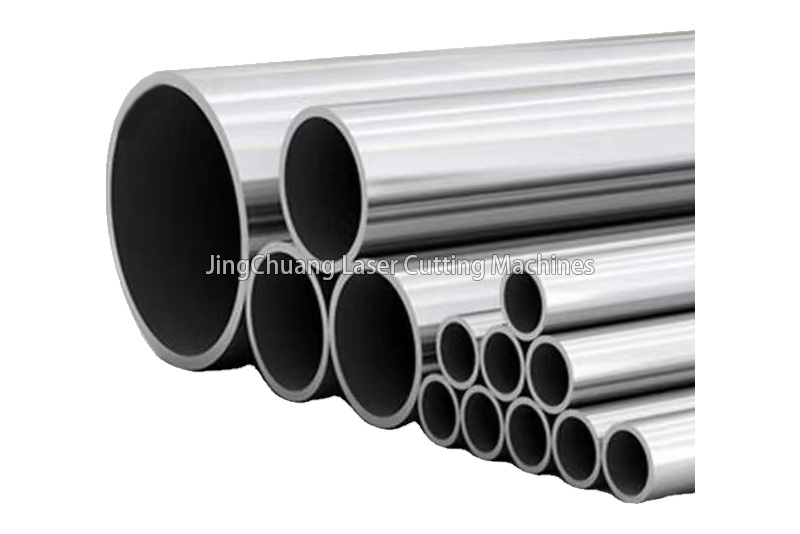

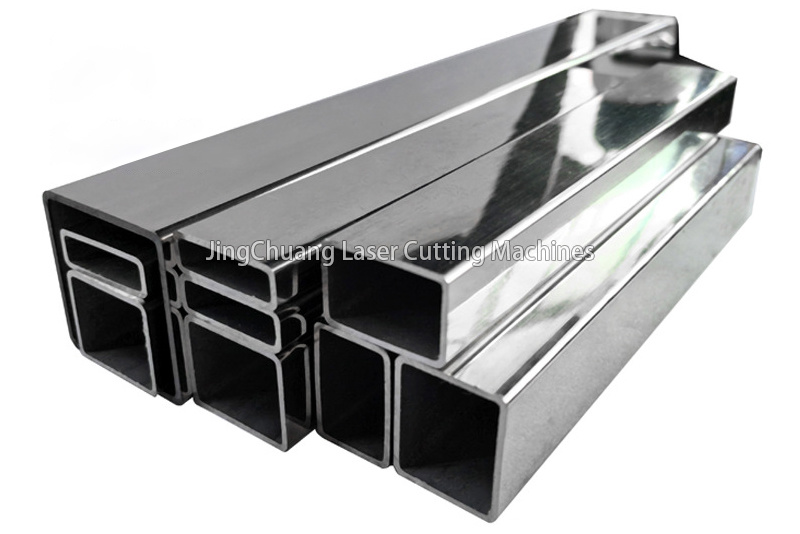

| Round Tube | Rectangular Tube/ Square Tube | Special shape Pipe |
 |
 |
 |

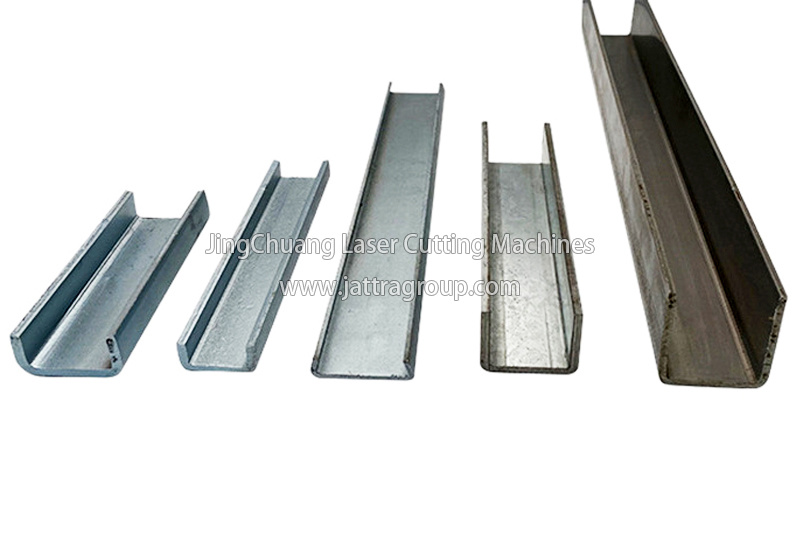

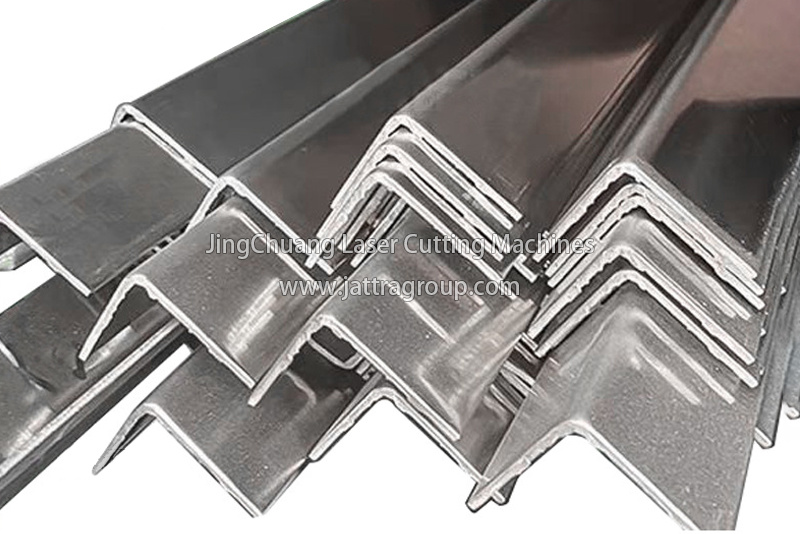

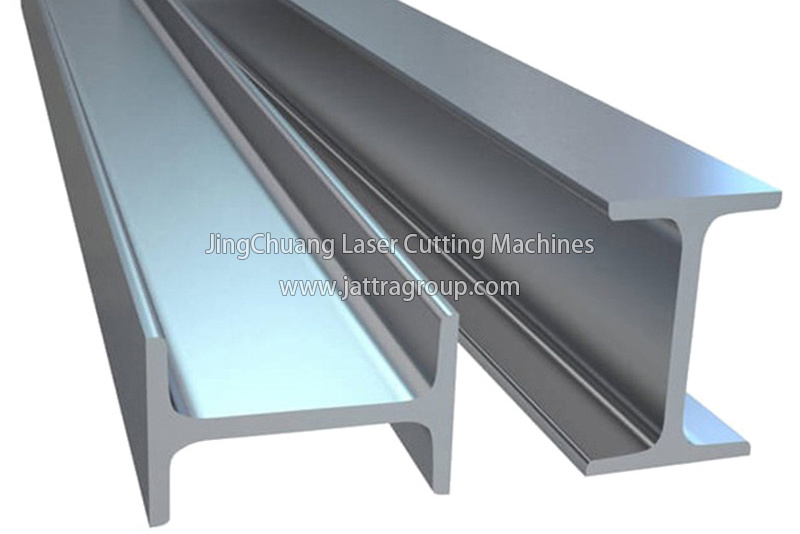

| I-Beam / H-Beam Strip Steel | Angle steel/ L shape Strip steel | U shape/ C shape Strip Steel |
 |
 |
 |
Optional automatic loading and unloading configuration, easy to achieve large quantities of the same specifications of the pipe batch processing production
Features:
1. Servo support, precise positioning
2. Large aperture, super clamping force, more inclusive
3. Can be groove cutting, ± 45 ° arbitrary swing
4. Roller auxiliary support device to ensure effective support, prevent pipe sagging, and ensure processing accuracy

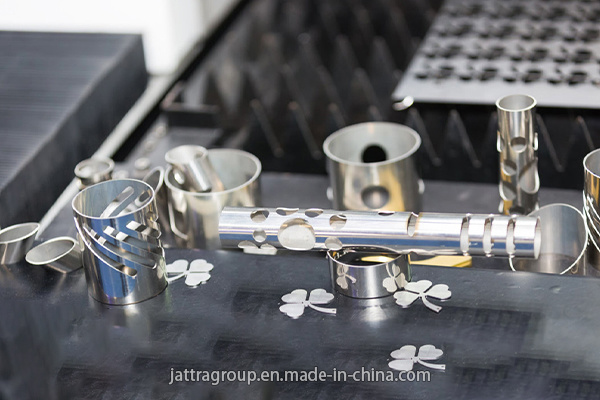

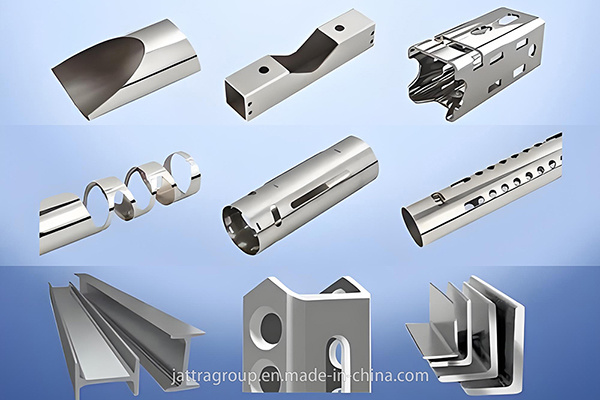

Cutting Samples:
 |
|
